NE76118 - L to S BAND LOW NOISE AMPLIFIER

NEC

📥 Download Datasheet

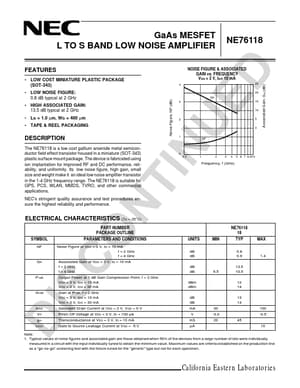

NE76118 Datasheet Preview — Preview of NE76118 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NE76118
Manufacturer	NEC
File Size	459.06 KB
Description	L to S BAND LOW NOISE AMPLIFIER
Datasheet	NE76118_NEC.pdf

NE76118 Product details

Description

NE76118 is a n-channel GaAs MES FET housed in MOLD package.

Features

Low noise figure NF = 0.8 dB TYP. at f = 2 GHz (1.25) 0.60 0.65 +0.1 0.3+0.1.
0.05 0.3 0.4.
0.05 2 2.1±0.2 1.25±0.1 3 0.3+0.1.
0.05 0.15+0.1.
0.05 0.3+0.1.
0.05 (1.3).
High associated gain 2.0±0.2 Ga = 13.5 dB TYP. at f = 2 GHz.
Gate width : Wg = 400 Pm.
4 pins super mini mold.
Tape & reel packaging only available V52 1 4 0 to 0.1.
