NES1823P-50

50 W L-BAND PUSH-PULL POWER GaAs MES FET

NES1823P-50 Features

* Push-pull type N-channel GaAs MES FET

* High output power: Pout = 50 W TYP.

* High linear gain: GL = 10.5 dB TYP.

* High power added efficiency: ηadd = 40 % TYP. @ VDS = 10.0 V, IDset = 4.0 A (total), f = 2.20 GHz ORDERING INFORMATION (PLAN) Part Number NES1823P-50

NES1823P-50 General Description

The NES1823P-50 is a 50 W push-pull type GaAs MES FET designed for high power transmitter applications for PCS, DCS, PHS, and IMT2000 base station systems. It is capable of delivering 50 W of output power (CW) with high linear gain, high efficiency and excellent distortion. Its primary band is 1.8 t.

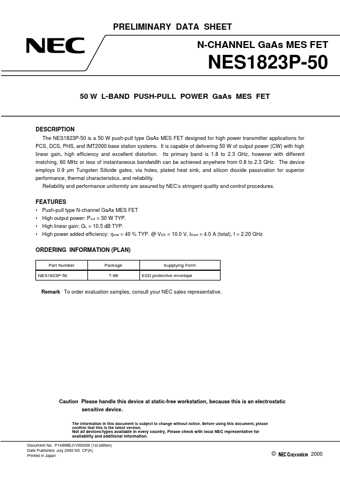

NES1823P-50 Datasheet (44.31 KB)

Preview of NES1823P-50 PDF

Datasheet Details

Part number:

NES1823P-50

Manufacturer:

NEC

File Size:

44.31 KB

Description:

50 w l-band push-pull power gaas mes fet.
