NEZ1414-2E

2W X / Ku-BAND POWER GaAs MESFET

NEZ1414-2E Features

* High Output Power : Po (1 dB) = +34.0 dBm typ.

* High Linear Gain

* High Efficiency : 8.5 dB typ. (NEZ1011-2E), 7.5 dB typ. (NEZ1414-2E) : 30 % typ.

* Input and Output Internally Matched for Optimum performance ORDERING INFORMATION Part Number NEZ1011-2E NEZ1414-2

NEZ1414-2E General Description

The NEZ1011-2E and NEZ1414-2E are power GaAs MESFETs which provide high gain, high efficiency and high output in X, Ku-band. The internal input and output matching enables guaranteed performance to be achieved with only a 50 Ω external circuit. To reduce thermal resistance the device has a PHS (Plat.

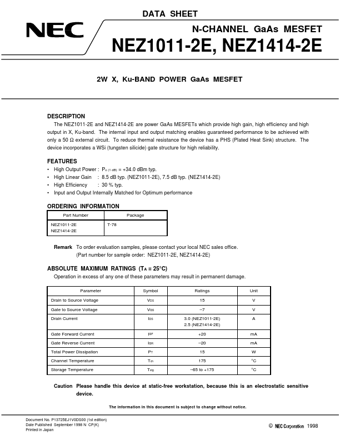

NEZ1414-2E Datasheet (81.78 KB)

Preview of NEZ1414-2E PDF

Datasheet Details

Part number:

NEZ1414-2E

Manufacturer:

NEC

File Size:

81.78 KB

Description:

2w x / ku-band power gaas mesfet.
