NL10276AC30-01

38 cm 15 inches / 1024 x 768 pixels / Full-color / Multi-scan Function / Built-in backlight with inverter Ultra wide viewing angle

NL10276AC30-01 Features

* Ultra wide viewing angle

* Multi-scan function

* e.g. XGA, SVGA, VGA, VGA-TEXT, PC9801, MAC

* High luminance

* Incorporated edge type backlight (Four lamps into two lamp holders, Inverter)

* Lamp holder replaceable (Part No. 150LHS01)

* On Sc

NL10276AC30-01 General Description

NL10276AC30-01A is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising www.DataSheet4U.com amorphous silicon TFT attached to each signal electrode, a driving circuit, a CRT interface board and a backlight. NL10276AC30-01A has a built-in backlight with an inverter.

NL10276AC30-01 Datasheet (285.21 KB)

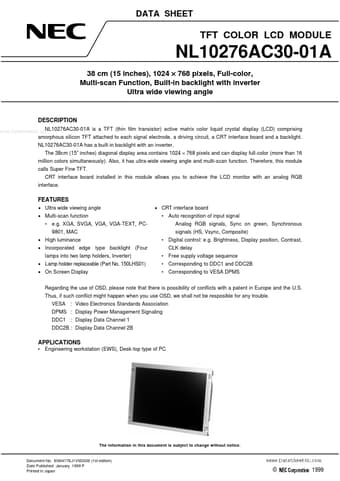

Preview of NL10276AC30-01 PDF

Datasheet Details

Part number:

NL10276AC30-01

Manufacturer:

NEC

File Size:

285.21 KB

Description:

38 cm 15 inches / 1024 x 768 pixels / full-color / multi-scan function / built-in backlight with inverter ultra wide viewing angle.
DATA SHEET TFT COLOR LCD MODULE NL10276AC30-01A 38 cm (15 inches), 1024 × 768 pixels, Full-color, Multi-scan Function, Built-in backlight with inver.
