NL10276AC30-03 - 38 cm 15.0 inches / 1024 x 768 pixels / FULL-COLOR / MULTI-SCAN FUNCTION Wide viewing angle

Product Overview

NEC

NL10276AC30-03 38 cm 15.0 inches / 1024 x 768 pixels / FULL-COLOR / MULTI-SCAN FUNCTION Wide viewing angle by NEC - Datasheet Preview — Datasheet preview – NL10276AC30-03

Datasheet Details

Part number	NL10276AC30-03
Manufacturer	NEC
File Size	338.36 KB
Description	38 cm 15.0 inches / 1024 x 768 pixels / FULL-COLOR / MULTI-SCAN FUNCTION Wide viewing angle
Datasheet	NL10276AC30-03 Datasheet

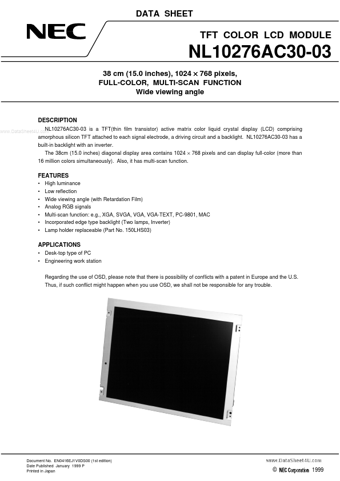

Additional preview pages of the NL10276AC30-03 datasheet.

Product details

Description

NL10276AC30-03 is a TFT(thin film transistor) active matrix color liquid crystal display (LCD) comprising www.DataSheet4U.com amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight.

Features

High luminance.
Low reflection.
Wide viewing angle (with Retardation Film).
Analog RGB signals.
Multi-scan function: e. g. , XGA, SVGA, VGA, VGA-TEXT, PC-9801, MAC.
Incorporated edge type backlight (Two lamps, Inverter).
Lamp holder replaceable (Part No. 150LHS03).
