NL8060BC31-01

TFT Color LCD Module

NL8060BC31-01 Features

* 6-bit digital RGB signals

* 3.3 V operation (5.0 V available)

* Thin and light weight

* Low reflection

* Low power consumption

* Incorporated edge light type backlight (One lamp, Inverter-less)

* Data enable function APPLICATIONS

* P

NL8060BC31-01 General Description

NL8060BC31-01 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. www.DataSheet4U.com The 31 cm diagonal display area contains 800 × 600 pixels and can display .

NL8060BC31-01 Datasheet (213.70 KB)

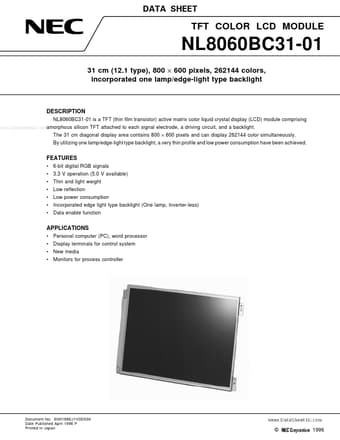

Preview of NL8060BC31-01 PDF

Datasheet Details

Part number:

NL8060BC31-01

Manufacturer:

NEC

File Size:

213.70 KB

Description:

Tft color lcd module.
DATA SHEET TFT COLOR LCD MODULE NL8060BC31-01 31 cm (12.1 type), 800 × 600 pixels, 262144 colors, incorporated one lamp/edge-light type backlight D.
