NL8060BC31-02

TFT Color LCD Module

NL8060BC31-02 Features

* Higher aperture ratio than NL8060BC31-01

* 6-bit digital RGB signals

* 3.3 V operation (5.0 V available)

* Thin and light weight

* Low reflection

* Low power consumption

* Incorporated edge light type backlight (One lamp, Inverter-less)

NL8060BC31-02 General Description

NL8060BC31-02 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. The 31 cm diagonal display area contains 800 × 600 pixels and can display 262144 color simulta.

NL8060BC31-02 Datasheet (182.37 KB)

Preview of NL8060BC31-02 PDF

Datasheet Details

Part number:

NL8060BC31-02

Manufacturer:

NEC

File Size:

182.37 KB

Description:

Tft color lcd module.

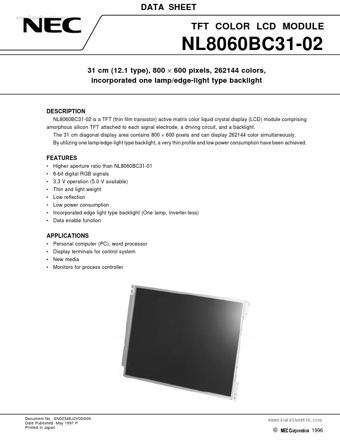

DATA SHEET www.DataSheet4U.com TFT COLOR LCD MODULE NL8060BC31-02 31 cm (12.1 type), 800 × 600 pixels, 262144 colors, incorporated one lamp/edge-lig.
