UPA1520B Datasheet, Array, NEC

UPA1520B Features

  • Array
  • 4 V driving is possible
  • Large Current and Low On-state Resistance ID (DC) = ± 2.0 A RDS (on) 1 ≤ 0.17 Ω MAX. (VGS = 10 V, ID = 1 A) RDS (on) 1 ≤ 0.25 Ω MAX. (VGS = 4

PDF File Details

Part number:

UPA1520B

Manufacturer:

NEC

File Size:

80.44kb

Download:

📄 Datasheet

Description:

N-channel power mosfet array. The µPA1520B is N-channel Power MOS FET Array that built in 4 circuits designed for solenoid, motor and lamp driver. 26.8 MAX. 10 PA

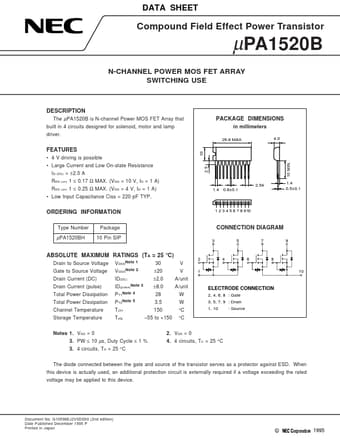

Datasheet Preview: UPA1520B 📥 Download PDF (80.44kb)
Page 2 of UPA1520B Page 3 of UPA1520B

UPA1520B Application

  • Applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a
