UPA1708G - N-Channel 40V MOSFET

UPA1708G Description

UPA1708G-VB UPA1708G-VB Datasheet N-Channel 40-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.014 at VGS = 10 V 0.016 .

UPA1708G Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

UPA1708G Applications

* Synchronous Rectification
* POL, IBC - Secondary Side D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 40 VGS ± 20 V TC = 25 °C 10 Continuous Drain Current (TJ =

📥 Download Datasheet

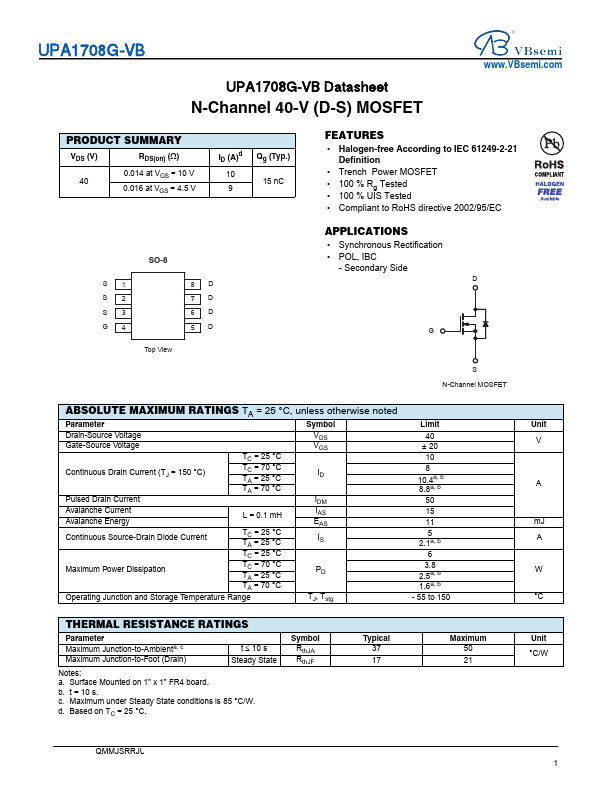

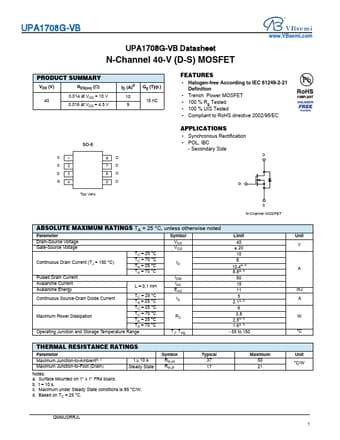

Preview of UPA1708G PDF

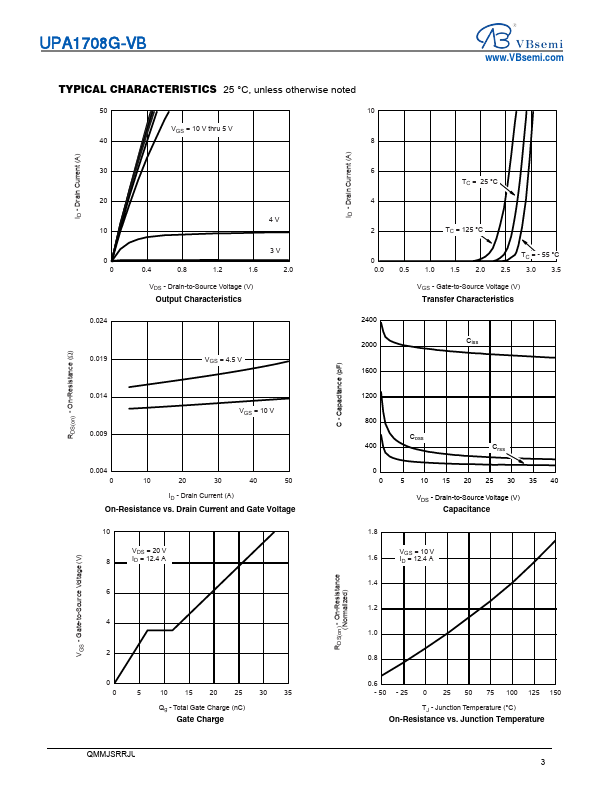

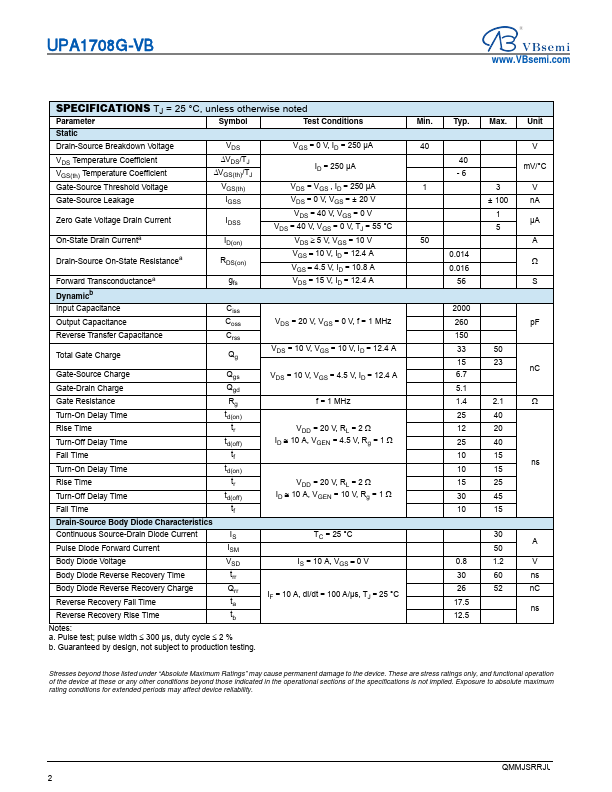

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPA1708G
Manufacturer
VBsemi
File Size
313.14 KB
Datasheet
UPA1708G-VBsemi.pdf
Description
N-Channel 40V MOSFET
