UPA1704 - SWITCHING N-CHANNEL POWER MOSFET

UPA1704 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR µ PA1704 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
This µPA1704 is N-Channel MOS Field Effect Transistor designed for power management applications and Li-ion battery application.

UPA1704 Features

* 2.5-V gate drive and low on-resistance 1.44 RDS(on)1 = 13 mΩ MAX. (VGS = 4.0 V, ID = 5.0 A) 1.8 MAX. 1 5.37 MAX. 4 6.0 ±0.3 4.4 +0.10
* 0.05 RDS(on)2 = 16 mΩ MAX. (VGS = 2.5 V, ID = 5.0 A)
* Low Ciss : Ciss = 2700 pF TYP.
* Built-in G-S protection diode

📥 Download Datasheet

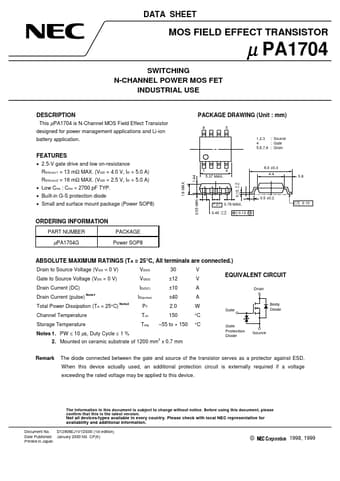

Preview of UPA1704 PDF
