UPA1700A, SWITCHING N-CHANNEL POWER MOSFET

DATA SHEET MOS FIELD EFFECT POWER TRANSISTORS µPA1700A SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
This product is N-Channel MOS Field Effect Transistor designed for DC/DC converters and power management of notebook computers.

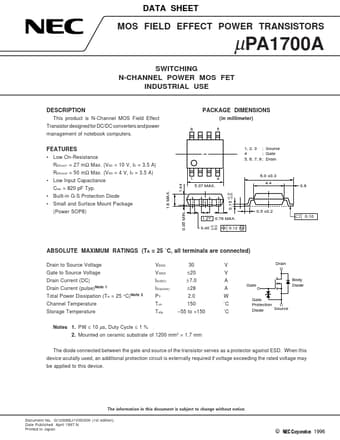

datasheet Preview Page 1 from Datasheet4u.com

UPA1700A_NEC.pdf

UPA1700A Datasheet Preview — Preview of UPA1700A PDF

Datasheet Details

Part number:

UPA1700A

Manufacturer:

NEC

File Size:

78.73 KB

Description:

SWITCHING N-CHANNEL POWER MOSFET

Features

* Low On-Resistance RDS(on)1 = 27 mΩ Max. (VGS = 10 V, ID = 3.5 A) RDS(on)2 = 50 mΩ Max. (VGS = 4 V, ID = 3.5 A)
* Low Input Capacitance 1.44 1.8 MAX. 1 5.37 MAX. +0.10
* 0.05 1, 2, 3 ; Source ; Gate 4 5, 6, 7, 8 ; Drain 4 6.0 ±0.3 4.4 0.8 Ciss = 820 pF Typ.
* Buil

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
