UPA1703 - SWITCHING N-CHANNEL POWER MOSFET

UPA1703 Description

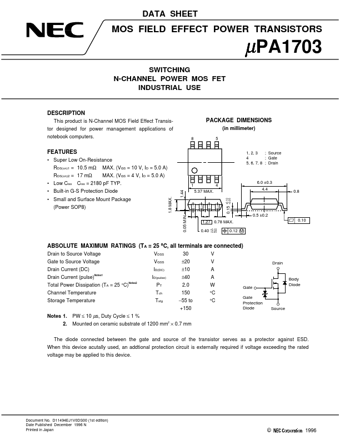

DATA SHEET MOS FIELD EFFECT POWER TRANSISTORS µPA1703 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
This product is N-Channel MOS Field Effect Transistor designed for power management applications of notebook computers.

UPA1703 Features

* Super Low On-Resistance RDS(on)1 = 10.5 mΩ RDS(on)2 = 17 mΩ
* Low Ciss MAX. (VGS = 10 V, ID = 5.0 A) MAX. (VGS = 4 V, ID = 5.0 A) 1 4 5.37 MAX. +0.10
* 0.05 1, 2, 3 ; Source 4 ; Gate 5, 6, 7, 8 ; Drain Ciss = 2180 pF TYP. 1.44 1.8 MAX. 6.0 ±0.3 4.4 0.8
* Built-in
