UPC8179TB, SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC8179TB SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS .
The µPC8179TB is a silicon monolithic integrated circuit designed as amplifier for mobile communications.

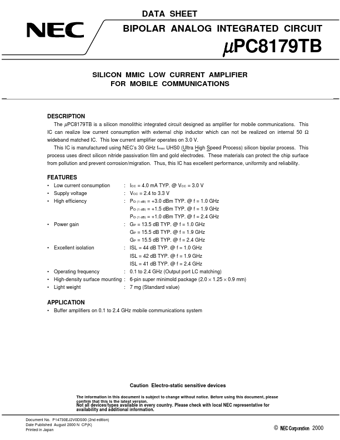

datasheet Preview Page 1 from Datasheet4u.com

UPC8179TB_NEC.pdf

UPC8179TB Datasheet Preview — Preview of UPC8179TB PDF

Datasheet Details

Part number:

UPC8179TB

Manufacturer:

NEC

File Size:

154.32 KB

Description:

SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS

Features

* Low current consumption
* Supply voltage
* High efficiency : ICC = 4.0 mA TYP. @ VCC = 3.0 V : VCC = 2.4 to 3.3 V : PO (1 dB) = +3.0 dBm TYP. @ f = 1.0 GHz PO (1 dB) = +1.5 dBm TYP. @ f = 1.9 GHz PO (1 dB) = +1.0 dBm TYP. @ f = 2.4 GHz
* Power gain : GP = 13.5 dB TY

Applications

* Internal Equivalent Circuit Signal input pin. A internal matching circuit, configured with resisters, enables 50 Ω connection over a wide band. This pin must be coupled to signal source with capacitor for DC cut. 2 3 5 GND 0
* Ground pin. This pin should be connected to system ground
