UPC817 - 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

UPC817 Description

UNISONIC TECHNOLOGIES CO., LTD UPC817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER PHOTOCOUPLER * .
The UTC UPC817 is a 4 pin DIP phototransistor photocoupler, it uses UTC’s advanced technology to provide the customers with high isolation voltage bet.

UPC817 Features

* High isolation voltage between input and output
* Creepage distance > 7.62 mm
* SYMBOL (1) (4) (2) (3)
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package Pin Assignment 1234 UPC817L-C04-R UPC817G-C04-R SMD-4 AKEC UPC817xL-C04-R UPC817xG-C04-R SM

📥 Download Datasheet

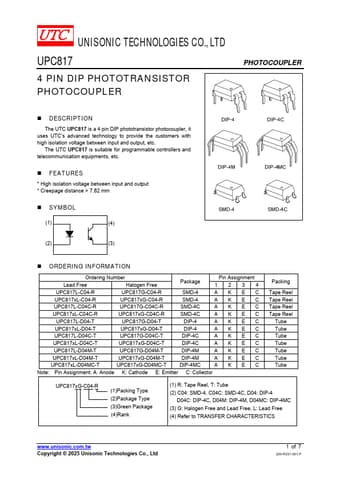

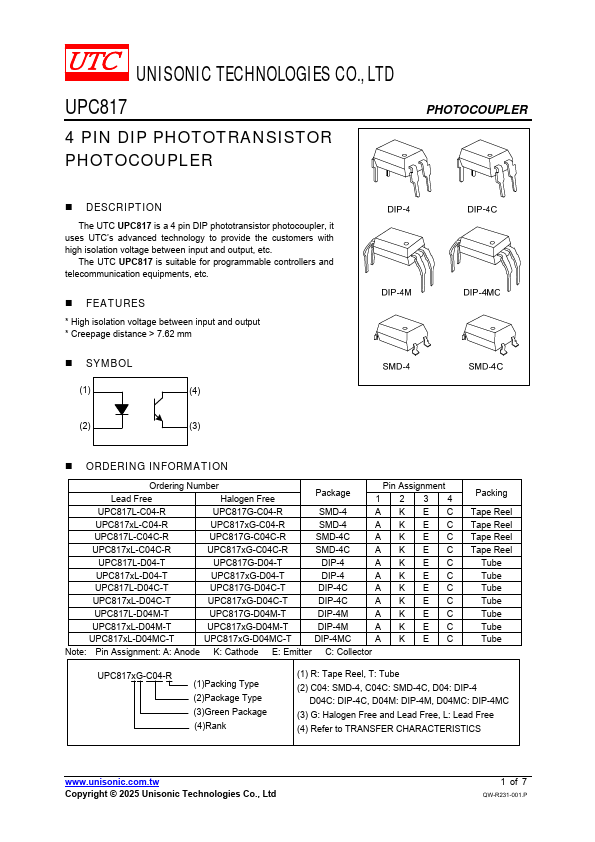

Preview of UPC817 PDF

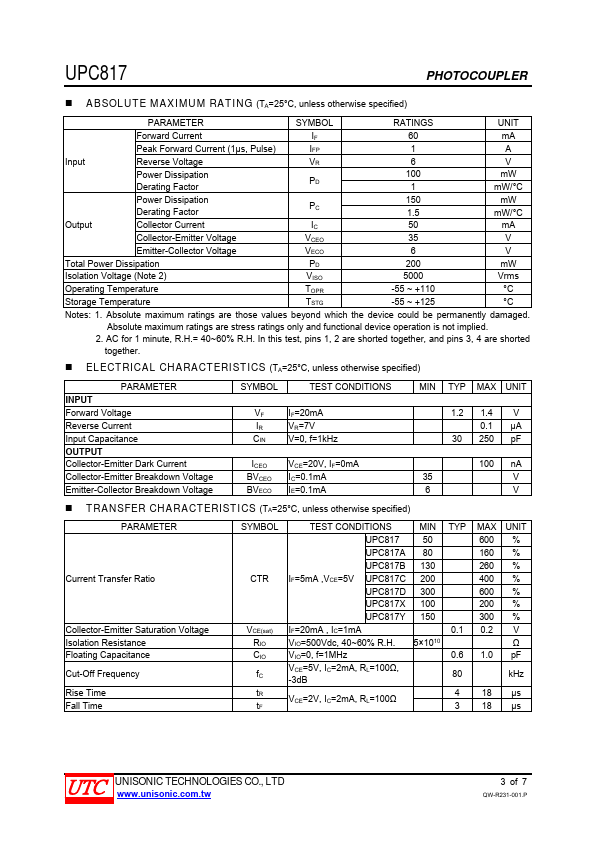

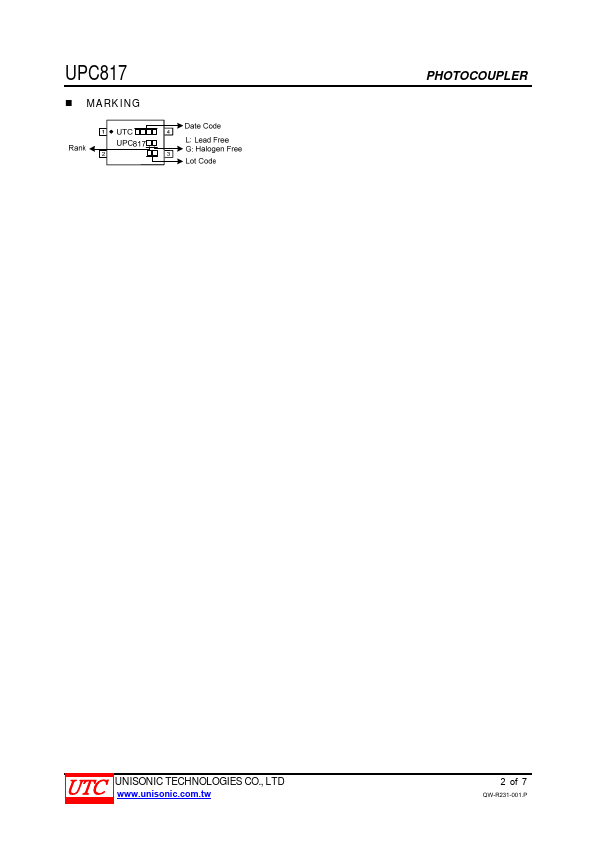

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPC817
Manufacturer
UTC
File Size
415.99 KB
Datasheet
UPC817-UTC.pdf
Description
4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
