uPC8179TK SILICON MMIC LOW CURRENT AMPLIFIER

📥 Download Datasheet  Datasheet Preview Page 1

Description

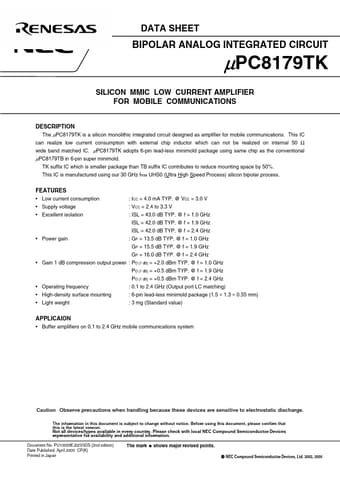

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC8179TK SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS .
The µPC8179TK is a silicon monolithic integrated circuit designed as amplifier for mobile communications.

📥 Download Datasheet

Preview of uPC8179TK PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
uPC8179TK
Manufacturer
Renesas ↗
File Size
334.25 KB
Datasheet
uPC8179TK-Renesas.pdf
Description
SILICON MMIC LOW CURRENT AMPLIFIER

Features

* Low current consumption : ICC = 4.0 mA TYP. @ VCC = 3.0 V
* Supply voltage : VCC = 2.4 to 3.3 V
* Excellent isolation : ISL = 43.0 dB TYP. @ f = 1.0 GHz ISL = 42.0 dB TYP. @ f = 1.9 GHz ISL = 42.0 dB TYP. @ f = 2.4 GHz
* Power gain : GP = 13.5 dB TYP. @ f

Applications

* Signal input pin. A internal matching circuit, configured with resisters, enables 50 Ω connection over a wide band. This pin must be coupled to signal source with capacitor for DC cut. Ground pin. This pin should be connected to system ground with minimum inductance. Ground pattern on the board shou
