UPD2114L-3, UPD2114L 4K-Bit Static RAM

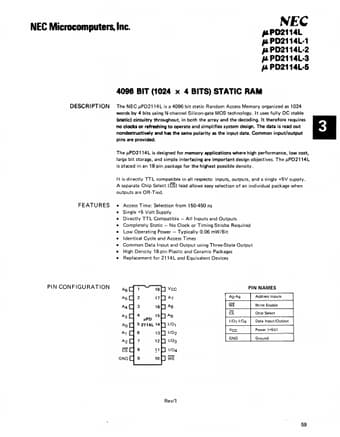

📥 Download Datasheet  Datasheet Preview Page 1

Description

NEe Microcomputers, Inc.NEe ".PD2114L I'PD2114L *1 I' PD2114L *2 JI.PD2114L *3 JI.PD2114L *5 .
4098 BIT (1024 )( 4 BITS) STATIC RAM The NEC I.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UPD2114L-3, UPD2114L. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UPD2114L-3, UPD2114L
Manufacturer
NEC
File Size
239.39 KB
Datasheet
UPD2114L_NEC.pdf
Description
4K-Bit Static RAM
Note
This datasheet PDF includes multiple part numbers: UPD2114L-3, UPD2114L.
Please refer to the document for exact specifications by model.

Features

* Access Time: Selection from 150-450 ns
* Single +5 Volt Supply
* Directly TTL Compatible - All Inputs and Outputs
* Completely Static - No Clock or Timing Strobe. Required
* Low Operating Power - Typically 0.06 mW/8it
* Identical Cycle and Access Ti

Applications

* where high performance, low cost, large bit storage, and simple interfacing are important design objectives. The I. lPD2114L is placed in an 18-pin package for the highest possible density. It is directly TTL compatible in all respects: inputs, outputs, and a single +5V supply. A separate Chip Selec
