UPD2118-2, UPD2118 Datasheet - NEC

UPD2118-2 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY

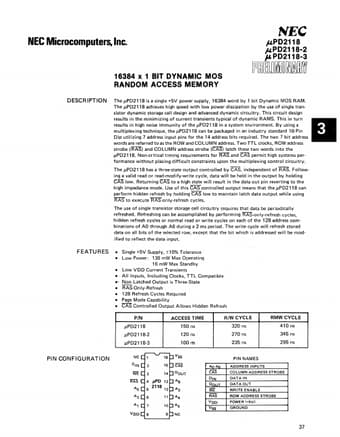

NEe Microcomputers, Inc. 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY NEe ,uPD2118 ,uPD2118-2 JI. PD2118-3 [~OO~[~~~~ffirnW DESCR IPTION ThepPD2118 is a single +5V power supply, 16384 word by 1 bit Dynamic MOS RAM. The IlPD2118 achieves high speed with low power dissipation by the use of single tran sistor dynamic storage cell design and advanced dynamic circuitry. This circuit design results in the minimizing of current transients typical of dynamic RAMS. This in turn II results in .

UPD2118-2 Features

* Single+5VSupply,±10%Tolerance

* Low Power: 138 mW Max Operating 16 mW Max Standby

* Low VDD Current Transients

* All Inputs, Including Clocks, TTL Compatible

* Non

* Latched Output is Three

* State

* RAS

* Only

* Refresh

* 1
