UPD4104 - 4096 x 1 STATIC NMOS RAM

Datasheet Summary

Features

  • ' . FastAccessTime-200ns (J. LPD4104-2).
  • Very Low Stand-By Power - 28 mW Max.
  • Low VCC Data Retention Mode to +3 Volts.
  • Single +5V ±10% Supply.
  • Fully TTL Compatible.
  • Available in 18 Pin Plastic and Ceramic Dual-in-Line Packages.
  • '3 Performance Ranges: II jlPD4104 jlPD4104-1 jlPD4104-2 ACCESS TIME 300 ns 250 ns 200 ns.

📥 Download Datasheet

Datasheet preview – UPD4104

Datasheet Details

Part number UPD4104
Manufacturer NEC
File Size 318.50 KB
Description 4096 x 1 STATIC NMOS RAM
Datasheet download datasheet UPD4104 Datasheet
Additional preview pages of the UPD4104 datasheet.

📁 Similar Datasheet

  • UPD41256 - 262144 Dynamic NMOS RAM (NEC Electronics)
  • UPD41257 - 262144 Dynamic NMOS RAM (NEC Electronics)
  • UPD41264 - Dual Port Graphics Buffer (NEC Electronics)
  • UPD41264C - Dual Port Graphics Buffer (NEC Electronics)
  • UPD41416 - 16K x 4-Bit DRAM (NEC Electronics)
  • UPD4066B - Quad Analog Switch / Miltiplexer (ETC)
  • UPD42101 - Line Buffer (NEC Electronics)
  • UPD42101G-3 - CMOS 7K-Bit FIFO Memory (ETC)
  • UPD4216160 - (UPD42S16160 / UPD42S18160) 16M-Bit DRAM (NEC Electronics)
  • UPD4216165L - 3.3V Operation 16M-Bit DRAM (NEC Electronics)
Other Datasheets by NEC
  • UPD4104-1 - 4096 x 1 STATIC NMOS RAM
  • UPD4104-2 - 4096 x 1 STATIC NMOS RAM
  • UPD411 - FULLY DECODED RANDOM ACCESS MEMORY
  • UPD411-1 - FULLY DECODED RANDOM ACCESS MEMORY
  • UPD411-2 - FULLY DECODED RANDOM ACCESS MEMORY
  • UPD411-3 - FULLY DECODED RANDOM ACCESS MEMORY
  • UPD411-4 - FULLY DECODED RANDOM ACCESS MEMORY
  • UPD411A - 4096-BIT DYNAMIC RAMS

Full PDF Text Transcription

Click to expand full text

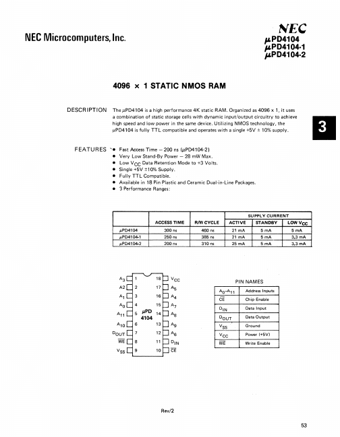

NEe Microcomputers, Inc. NEe p.PD4104 p.PD41 04·1 pPD41 04·2 4096 x 1 STATIC NMOS RAM DEseR IPTION The J.LPD4104 is a high performance 4K static RAM. Organized as 4096 x 1, it uses a combination of static storage cells with dynamic input/output circuitry to achieve high speed and low power in the same device. Utilizing NMOS technology, the J.LPD4104 is fully TTL compatible and operates with a single +5V ± 10% supply. FEATURES ' . FastAccessTime-200ns (J.LPD4104-2) • Very Low Stand-By Power - 28 mW Max. • Low VCC Data Retention Mode to +3 Volts. • Single +5V ±10% Supply. • Fully TTL Compatible. • Available in 18 Pin Plastic and Ceramic Dual-in-Line Packages. • '3 Performance Ranges: II jlPD4104 jlPD4104-1 jlPD4104-2 ACCESS TIME 300 ns 250 ns 200 ns RIWCYCLE 4S0 ns .
