UPD61152 MPEG2 AUDIO VIDEO ENCODER LSI

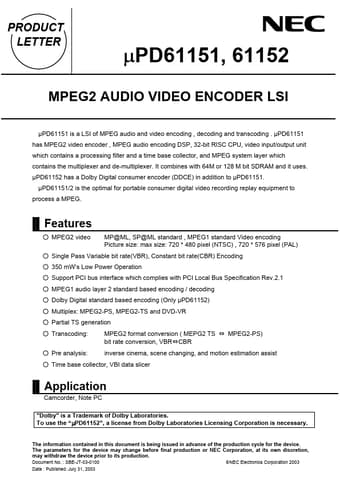

PRODUCT LETTER µPD61151, 61152 MPEG2 AUDIO VIDEO ENCODER LSI µPD61151 is a LSI of MPEG audio and video encoding , decoding and transcoding . µPD61151 has MPEG2 video encoder , MPEG audio encoding DSP, 32-bit RISC CPU, video input/output unit which contains a processing filter and a time base collector, and MPEG system layer which contains the multiplexer and de-multiplexer. It combines with 64M or 128 M bit SDRAM and it uses. µPD61152 has a Dolby Digital consumer encoder (DDCE) in addition to.

UPD61152 Features

* ○ MPEG2 video MP@ML, SP@ML standard , MPEG1 standard Video encoding Picture size: max size: 720

* 480 pixel (NTSC) , 720

* 576 pixel (PAL) ○ Single Pass Variable bit rate(VBR), Constant bit rate(CBR) Encoding ○ 350 mW’s Low Power Operation ○ Support PCI bus interface which complies with

UPD6115x_NEC.pdf

This datasheet PDF includes multiple part numbers: UPD61152, UPD6115x. Please refer to the document for exact specifications by model.
UPD61152 Datasheet Preview Page 2 UPD61152 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD61152, UPD6115x

Manufacturer:

NEC

File Size:

168.47 KB

Description:

Mpeg2 audio video encoder lsi.

Note:

This datasheet PDF includes multiple part numbers: UPD61152, UPD6115x.
Please refer to the document for exact specifications by model.
