UPD61171 - Second Generation Enhanced Multimedia Architecture

UPD61171 Description

PRELIMINARY PRODUCT LETTER MOS INTEGRATED CIRCUIT µPD61171 SECOND GENERATION ENHANCED MULTIMEDIA ARCHITECTURE PROCESSOR FOR DVD RECORDER/PERSONAL VI.
The µPD61171 is a fully-integrated system processor for DVD recorders or personal video recorders (PVR).

UPD61171 Features

* DVD-Video, DVD-Video Recording compliant DVB, MPEG2-TS/PS and MPEG1 compliant codec DolbyTM digital audio codec, DTSTM audio decoder High performance, dual MIP

UPD61171 Applications

* DVD recorders, personal video recorders, home servers ORDERING INFORMATION Part number Package 449-pin plastic BGA (27 × 27) Remark XYZ: Audio option µPD61171F1-XYZ-MN2-A “Dolby” and “Dolby Digital” are trademarks of Dolby Laboratories. To use the µ PD61171, a license from Dolby Laboratories Lice

📥 Download Datasheet

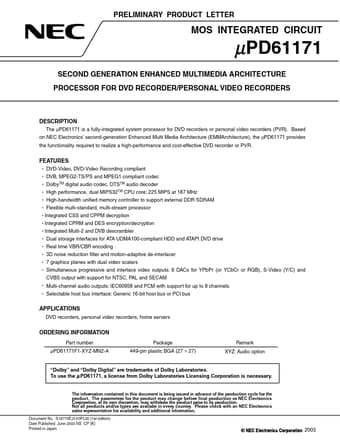

Preview of UPD61171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD61171
Manufacturer
NEC
File Size
164.33 KB
Datasheet
UPD61171_NEC.pdf
Description
Second Generation Enhanced Multimedia Architecture
