UPD78C14 - 8-BIT SINGLE-CHIP MICROCONTROLLER WITH A/D CONVERTER

NEC

📥 Download Datasheet

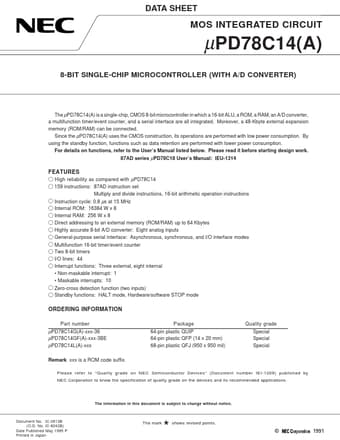

UPD78C14 Datasheet Preview — Preview of UPD78C14 PDF

Datasheet Details

Part number	UPD78C14
Manufacturer	NEC
File Size	256.59 KB
Description	8-BIT SINGLE-CHIP MICROCONTROLLER WITH A/D CONVERTER
Datasheet	UPD78C14_NEC.pdf

UPD78C14 Product details

Description

Method 14 Instruction Code Description 16 Instruction Execution Time17 4. 5. 6. 7. 8. LIST OF MODE REGISTERS 29 ELECTRICAL SPECIFICATIONS 30 CHARACTERISTIC CURVES (reference value) 41 PACKAGE DRAWINGS 44 RECOMMENDED SOLDERING CONDITIONS 47 APPENDIX DEVELOPMENT TOOLS 49 5 µPD78C14(A) 1. DIFFERENCES BETWEEN µPD78C14(A) AND µPD78C14 Part number Item Quality grade Electrical specifications Package Special Input leakage current (AN7-0; ±1 µA (MAX.) 64-pin plastic QUIP 64-pin

Features

High reliability as compared with µPD78C14 159 instructions: 87AD instruction set Multiply and divide instructions, 16-bit arithmetic operation instructions Instruction cycle: 0.8 µs at 15 MHz Internal ROM: 16384 W x 8 Internal RAM: 256 W x 8 Direct addressing to an external memory (ROM/RAM) up to 64 Kbytes Highly accurate 8-bit A/D converter: Eight analog inputs General-purpose serial interface: Asynchronous, synchronous, and I/O interface modes Multifunction 16-bit timer/event counter Two 8-bi.
