UPD78C14A, UPD78C14 Datasheet - NEC

UPD78C14A 8-BIT SINGLE-CHIP MICROCONTROLLER WITH A/D CONVERTER

Method 14 Instruction Code Description 16 Instruction Execution Time17 4. 5. 6. 7. 8. LIST OF MODE REGISTERS 29 ELECTRICAL SPECIFICATIONS 30 CHARACTERISTIC CURVES (reference value) 41 PACKAGE DRAWINGS 44 RECOMMENDED SOLDERING CONDITIONS 47 APPENDIX DEVELOPMENT TOOLS 49 5 µPD78C14(A) 1. DIFFEREN.
DATA SHEET MOS INTEGRATED CIRCUIT µPD78C14(A) 8-BIT SINGLE-CHIP MICROCONTROLLER (WITH A/D CONVERTER) The µPD78C14(A) is a single-chip, CMOS 8-bit microcontroller in which a 16-bit ALU, a ROM, a RAM, an A/D converter, a multifunction timer/event counter, and a serial interface are all integrated. Moreover, a 48-Kbyte external expansion memory (ROM/RAM) can be connected. Since the µPD78C14(A) uses the CMOS construction, its operations are performed with low power consumption. By using the stand.

UPD78C14A Features

* High reliability as compared with µPD78C14 159 instructions: 87AD instruction set Multiply and divide instructions, 16-bit arithmetic operation instructions Instruction cycle: 0.8 µs at 15 MHz Internal ROM: 16384 W x 8 Internal RAM: 256 W x 8 Direct addressing to an external memory (ROM/RAM) up to 6

UPD78C14_NEC.pdf

This datasheet PDF includes multiple part numbers: UPD78C14A, UPD78C14. Please refer to the document for exact specifications by model.

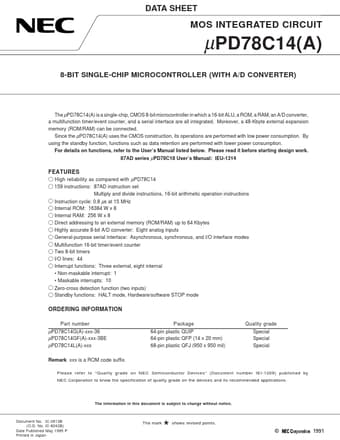

UPD78C14A Datasheet Preview Page 2 UPD78C14A Datasheet Preview Page 3

Datasheet Details

Part number:

UPD78C14A, UPD78C14

Manufacturer:

NEC

File Size:

256.59 KB

Description:

8-bit single-chip microcontroller with a/d converter.

Note:

This datasheet PDF includes multiple part numbers: UPD78C14A, UPD78C14.
Please refer to the document for exact specifications by model.
