UPG2012TB - L-BAND SPDT SWITCH

Description

mobile phone and another L-band application.

This device can operate frequency from 0.5 GHz to 2.5 GHz, having the low insertion loss and high isolation.

Features

  • Supply voltage : VDD = 2.7 to 3.0 V (2.8 V TYP. ).
  • Switch control voltage : Vcont (H) = 2.7 to 3.0 V (2.8 V TYP. ) : Vcont (L) =.
  • 0.2 to +0.2 V (0 V TYP. ).
  • Low insertion loss : LINS1 = 0.27 dB TYP. @ f = 0.5 to 1.0 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V : LINS2 = 0.30 dB TYP. @ f = 2.0 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V : LINS3 = 0.30 dB TYP. @ f = 2.5 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V (Reference value).
  • High isolation : ISL1 = 28 dB TYP. @.

📥 Download Datasheet

Datasheet preview – UPG2012TB

Datasheet Details

Part number UPG2012TB
Manufacturer NEC
File Size 319.49 KB
Description L-BAND SPDT SWITCH
Datasheet download datasheet UPG2012TB Datasheet
Additional preview pages of the UPG2012TB datasheet.

📁 Similar Datasheet

  • UPG2012TB - L-BAND SPDT SWITCH (CEL)
  • UPG2015TB - 1W SINGLE CONTROL L / S-BAND SPDT SWITCH (CEL)
  • UPG2009TB - L-BAND HIGH POWER SPDT SWITCH (CEL)
  • UPG2022T5G - HIGH POWER GaAs MMIC SPDT SWITCH (CEL)
  • UPG2022TB - 4.8 TO 5.85 GHz HIGH POWER GaAs MMIC SPDT SWITCH (CEL)
  • UPG2024TQ - NECs GaAs MMIC DPDT SWITCHES (California Eastern Labs)
  • UPG2031TQ - L-BAND SP3T SWITCH (CEL)
  • UPG2035T5F - BROADBAND GaAs MMIC DPDT SWITCH (CEL)
  • UPG20N60 - SMPS N-CHANNEL IGBT (UTC)
  • UPG2118K - 1.5W GaAs MMIC POWER AMPLIFIER (CEL)
Other Datasheets by NEC
  • UPG2012TK - NECs W SINGLE CONTROL L/ S-BAND SPDT SWITCH
  • UPG2006TB - NECs 1.8 V L/ S-BAND SPDT SWITCH
  • UPG2009TB - L-BAND HIGH POWER SPDT SWITCH
  • UPG2027TQ - NECs L-BAND 4W HIGH POWER SPDT SWITCH IC
  • UPG2030TB - NECs 1W L/ S-BAND SPDT SWITCH
  • UPG2030TK - NECs 1 W ULTRA SMALL SPDT SWITCH
  • UPG2106TB - L-BAND PA DRIVER AMPLIFIER
  • UPG2110TB - L-BAND PA DRIVER AMPLIFIER

Full PDF Text Transcription

Click to expand full text

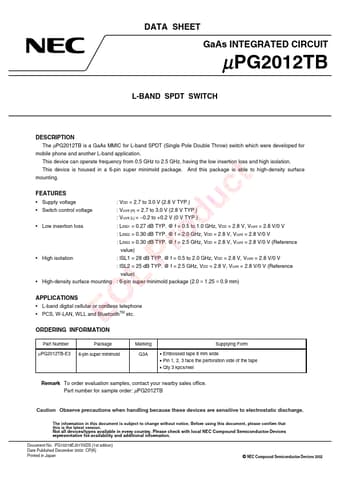

DATA SHEET GaAs INTEGRATED CIRCUIT µPG2012TB L-BAND SPDT SWITCH DESCRIPTION The µPG2012TB is a GaAs MMIC for L-band SPDT (Single Pole Double Throw) switch which were developed for mobile phone and another L-band application. This device can operate frequency from 0.5 GHz to 2.5 GHz, having the low insertion loss and high isolation. This device is housed in a 6-pin super minimold package. And this package is able to high-density surface mounting. FEATURES • Supply voltage : VDD = 2.7 to 3.0 V (2.8 V TYP.) • Switch control voltage : Vcont (H) = 2.7 to 3.0 V (2.8 V TYP.) : Vcont (L) = −0.2 to +0.2 V (0 V TYP.) • Low insertion loss : LINS1 = 0.27 dB TYP. @ f = 0.5 to 1.0 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V : LINS2 = 0.30 dB TYP. @ f = 2.0 GHz, VDD = 2.8 V, Vcont = 2.
