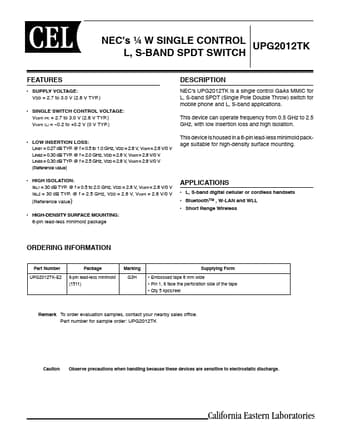

UPG2012TK Datasheet, Switch, NEC

UPG2012TK Features

• Switch
• SUPPLY VOLTAGE: VDD = 2.7 to 3.0 V (2.8 V TYP.)
• SINGLE SWITCH CONTROL VOLTAGE: Vcont (H) = 2.7 to 3.0 V (2.8 V TYP.) Vcont (L) =
• 0.2 to +0.2 V (0 V TYP.)

PDF File Details

Part number:

UPG2012TK

Manufacturer:

NEC

File Size:

306.01kb

Download:

📄 Datasheet

Description:

Necs w single control l/ s-band spdt switch. NEC's UPG2012TK is a single control GaAs MMIC for L, S-band SPDT (Single Pole Double Throw) switch for mobile phone and L, S-band app

UPG2012TK Application

• Applications This device can operate frequency from 0.5 GHz to 2.5 GHz, with low insertion loss and high isolation. This device is housed in a 6-pi
