UPG2027TQ - NECs L-BAND 4W HIGH POWER SPDT SWITCH IC

Description

APPLICATIONS GSM Triple / Quad Band Cellular Cordless Phones Short Range Wireless ORDERING INFORMATION PART NUMBER UPG2027TQ-E1-A PACKAGE 10-pin plastic TSON MARKING 2027 SUPPLYING FORM Embossed tape 8 mm wide Pins 5, 6 face the perforation side of

Features

  • LOW.

📥 Download Datasheet

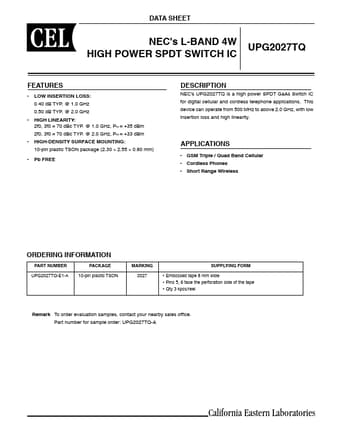

Datasheet preview – UPG2027TQ

Datasheet Details

Part number UPG2027TQ
Manufacturer NEC
File Size 366.79 KB
Description NECs L-BAND 4W HIGH POWER SPDT SWITCH IC
Datasheet download datasheet UPG2027TQ Datasheet
Additional preview pages of the UPG2027TQ datasheet.

📁 Similar Datasheet

  • UPG2022T5G - HIGH POWER GaAs MMIC SPDT SWITCH (CEL)
  • UPG2022TB - 4.8 TO 5.85 GHz HIGH POWER GaAs MMIC SPDT SWITCH (CEL)
  • UPG2024TQ - NECs GaAs MMIC DPDT SWITCHES (California Eastern Labs)
  • UPG2009TB - L-BAND HIGH POWER SPDT SWITCH (CEL)
  • UPG2012TB - L-BAND SPDT SWITCH (CEL)
  • UPG2015TB - 1W SINGLE CONTROL L / S-BAND SPDT SWITCH (CEL)
  • UPG2031TQ - L-BAND SP3T SWITCH (CEL)
  • UPG2035T5F - BROADBAND GaAs MMIC DPDT SWITCH (CEL)
  • UPG20N60 - SMPS N-CHANNEL IGBT (UTC)
  • UPG2118K - 1.5W GaAs MMIC POWER AMPLIFIER (CEL)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
DATA SHEET NEC's L-BAND 4W HIGH POWER SPDT SWITCH IC FEATURES • LOW INSERTION LOSS: 0.40 dB TYP. @ 1.0 GHz 0.50 dB TYP. @ 2.0 GHz • HIGH LINEARITY: 2f0, 3f0 = 70 dBc TYP. @ 1.0 GHz, Pin = +35 dBm 2f0, 3f0 = 70 dBc TYP. @ 2.0 GHz, Pin = +33 dBm • • HIGH-DENSITY SURFACE MOUNTING: 10-pin plastic TSON package (2.30 × 2.55 × 0.60 mm) Pb FREE UPG2027TQ NEC's UPG2027TQ is a high power SPDT GaAs Switch IC for digital cellular and cordless telephone applications. This device can operate from 500 MHz to above 2.0 GHz, with low insertion loss and high linearity.
