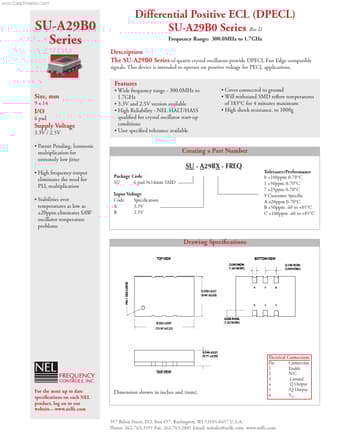

SU-A29B0 Datasheet Preview — Preview of SU-A29B0 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SU-A29B0
Manufacturer	NEL
File Size	137.30 KB
Description	DPECL
Datasheet	SU-A29B0_NEL.pdf

SU-A29B0 Product details

Description

The SU-A29B0 Series of quartz crystal oscillators provide DPECL Fast Edge compatible signals.This device is intended to operate on positive voltage for PECL applications.

Features

Size, mm 9 x 14.
Wide frequency range - 300.0MHz to 1.7GHz.
3.3V and 2.5V version available.
High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions.
User specified tolerance available I/O 6 pad.
Cover connected to ground.
Will withstand SMD reflow temperatures of 183°C for 4 minutes maximum.
High shock resistance, to 1000g Supply Voltage 3.3V / 2.5V.
Patent Pending, harmonic multiplicati.
