SU-A3DCXXX - LVDS HF VCXO

NEL

📥 Download Datasheet

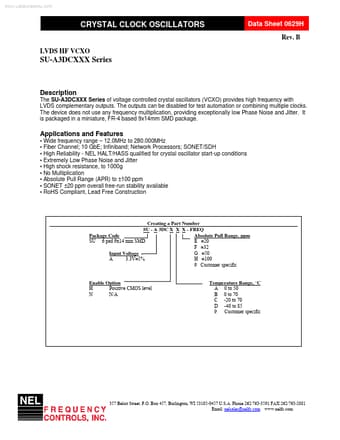

SU-A3DCXXX Datasheet Preview — Preview of SU-A3DCXXX PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SU-A3DCXXX
Manufacturer	NEL
File Size	166.02 KB
Description	LVDS HF VCXO
Datasheet	SU-A3DCXXX_NEL.pdf

SU-A3DCXXX Product details

Description

The SU-A3DCXXX Series of voltage controlled crystal oscillators (VCXO) provides high frequency with LVDS complementary outputs.

Features

Wide frequency range.
12.0MHz to 280.000MHz.
Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH.
High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions.
Extremely Low Phase Noise and Jitter.
High shock resistance, to 1000g.
No Multiplication.
Absolute Pull Range (APR) to ±100 ppm.
SONET ±20 ppm overall free-run stability available.
RoHS Compliant, Lead Free Cons.
