SU-A2D10 - LVDS

NEL

📥 Download Datasheet

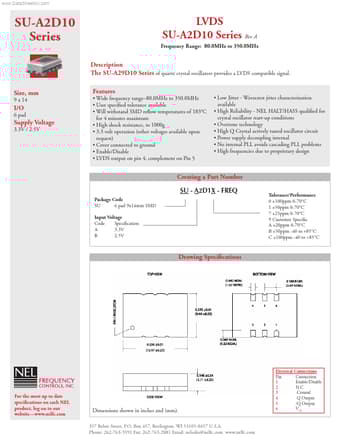

SU-A2D10 Datasheet Preview — Preview of SU-A2D10 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SU-A2D10
Manufacturer	NEL
File Size	144.35 KB
Description	LVDS
Datasheet	SU-A2D10_NEL.pdf

SU-A2D10 Product details

Description

The SU-A29D10 Series of quartz crystal oscillators provides a LVDS compatible signal.

Features

Wide frequency range.
80.0MHz to 350.0MHz.
User specified tolerance available.
Will withstand SMD reflow temperatures of 183°C for 4 minutes maximum.
High shock resistance, to 1000g.
3.3 volt operation (other voltages available upon request).
Cover connected to ground.
Enable/Disable.
LVDS output on pin 4, complement on Pin 5 I/O 6 pad Supply Voltage 3.3V / 2.5V.
Low Jitter - Wavecrest jitter character.
