S7I323684M

1Mx36 & 2Mx18 DDRII CIO BL4 SRAM

S7I323684M Features

* 1.8V+0.1V/-0.1V Power Supply.

* DLL circuitry for wide output data valid window and future fre- quency scaling.

* I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/-0.1V for 1.8V I/O

* Pipelined, double-data rate operation.

* Common data input/outp

S7I323684M General Description

The S7I323684M and S7I321884M are 37,748,736-bits DDR Common I/O Synchronous Pipelined Burst SRAMs. They are organized as 1,048,576 words by 36bits for S7I323684M and 2,097,152 words by 18 bits for S7I321884M. Address, data inputs, and all control signals are synchronized to the input clock (K or K).

S7I323684M Datasheet (354.48 KB)

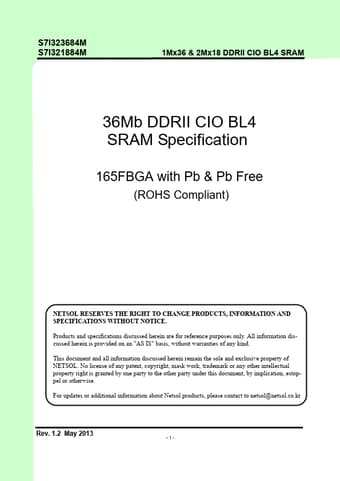

Preview of S7I323684M PDF

Datasheet Details

Part number:

S7I323684M

Manufacturer:

NETSOL

File Size:

354.48 KB

Description:

1mx36 & 2mx18 ddrii cio bl4 sram.
SS77I3I32233668844MM SS77I3I32211888844MM 11MMxx3366 && 22MMxx1188 DDDDRRIIII CCIIOO BBLL44 SSRRAAMM 36Mb DDRII CIO BL4 SRAM Specification 165FBGA w.
