NF2W757DRT-V1M3 Datasheet (NICHIA)

NF2W757DRT-V1M3 - LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.018g(TYP) * 。 Dimensions do not include mold flash.

KA Protection Device 4 SOLDERING NICHIA STS-DA1-3089B

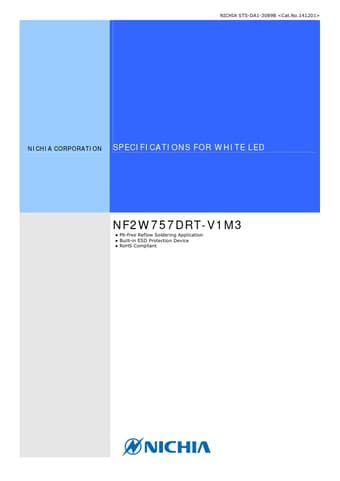

NICHIA STS-DA1-3089B NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NF2W757DRT-V1M3 Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 400 Allowable Reverse Current IR 85 Power Dissipation PD 1.42 Operating Temperature Topr -40~100 Storage Temperature Tstg -40~100 Junction Temperatu

NF2W757DRT-V1M3 Datasheet - NICHIA

NF2W757DRT-V1M3 - LED
