NJSA172AT - LED

📥 Download Datasheet

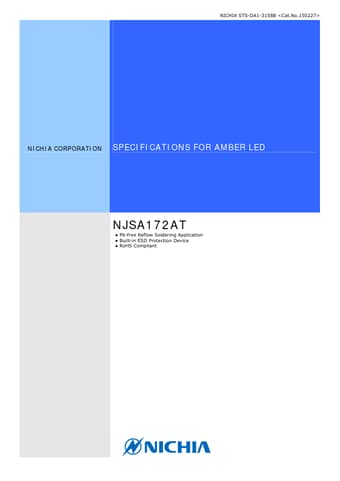

Preview of NJSA172AT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number NJSA172AT
Manufacturer NICHIA
File Size 311.62 KB
Description LED
Datasheet download datasheet NJSA172AT-NICHIA.pdf

NJSA172AT Product details

Description

2.7 1 Package Materials Encapsulating Resin Materials Electrodes Materials Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated Weight 0.024g (TYP) Cathode 0.5 Anode 2.7 KA Protection Device 4 SOLDERING NICHIA STS-DA1-3158B Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 260°CMax 10sec Max Recommended Hand Soldering Condition Temperature 350°C Max So
