NJSW170CT - WHITE LED

Ceramics （） Hard Glass (with phosphor) Encapsulating Resin Materials Silicone Resin Electrodes Materials Weight Au-plated 0.0041g(TYP) * 。 Dimensions do not include mold flash.

K A Protection Device 4 SOLDERING * Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per

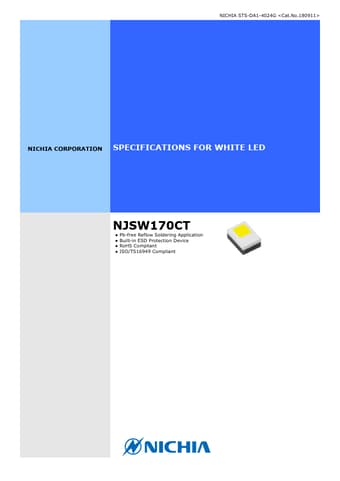

NICHIA STS-DA1-4024G NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NJSW170CT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant ISO/TS16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4024G (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 700 Pulse Forward Current IFP 900 Allowable Reverse Current IR 85 Power Dissipation PD 2.31 Operating Temperature Topr
