P1010ATF Datasheet - NIKO-SEM

P1010ATF N-Channel MOSFET

NIKO-SEM N-Channel Enhancement Mode P1010ATF Field Effect Transistor TO-220F Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 100V 10.7mΩ ID 48A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 ° C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 ° C TC = 100 ° C Avalanche Current Avalanche Energy L = 1mH Power Dissipation TC = 25 ° C TC = 100 ° C Operating Junction .

P1010ATF-NIKOSEM.pdf

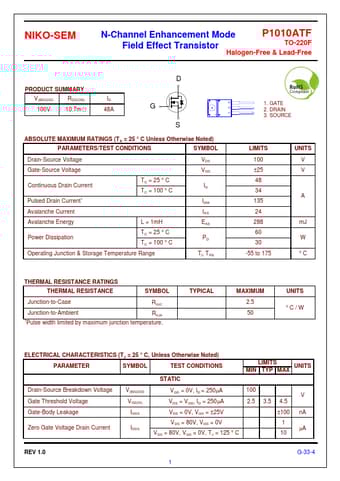

Preview of P1010ATF PDF
P1010ATF Datasheet Preview Page 2 P1010ATF Datasheet Preview Page 3

Datasheet Details

Part number:

P1010ATF

Manufacturer:

NIKO-SEM

File Size:

162.36 KB

Description:

N-channel mosfet.
