P1010AP06

Self-Supplied Monolithic Switcher

P1010AP06 Features

* Built

* in 700 V MOSFET with Typical RDSon of 11 W and 22 W

* Large Creepage Distance Between High

* Voltage Pins

* Current

* Mode Fixed Frequency Operation: 65 kHz

* 100 kHz

* 130 kHz

* Skip

* Cycle Operation at Low Peak Curr

P1010AP06 General Description

Pin No. (SOT

*223) Pin No. (PDIP

*7) Pin Name Function Description 1 1 VCC Powers the Internal Circuitry This pin is connected to an external capacitor of typic- ally 10 mF. The natural ripple superimposed on the VCC participates to the frequency jittering. For improved stan.

P1010AP06 Datasheet (483.17 KB)

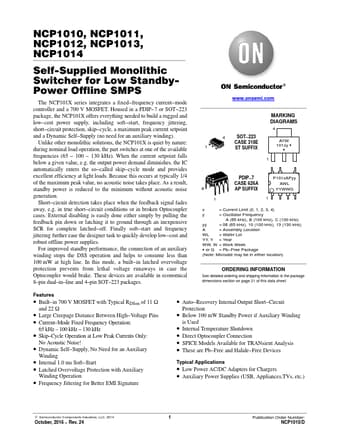

Preview of P1010AP06 PDF

Datasheet Details

Part number:

P1010AP06

Manufacturer:

ON Semiconductor ↗

File Size:

483.17 KB

Description:

Self-supplied monolithic switcher.
NCP1010, NCP1011, NCP1012, NCP1013, NCP1014 Self-Supplied Monolithic Switcher for Low StandbyPower Offline SMPS The NCP101X series integrates a fixed.
