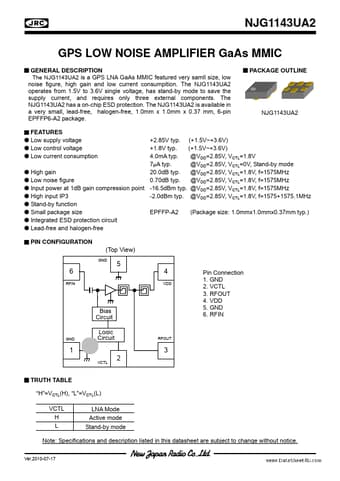

Part number: NJG1143UA2
Manufacturer: NJR
File Size: 404.49KB
Download: 📄 Datasheet
Description: GPS Low Noise Amplifier GaAs MMIC
" Low supply voltage " Low control voltage " Low current consumption ! PACKAGE OUTLINE
NJG1143UA2
+2.85V typ. (+1.5V~+3.6V) +1.8V typ. (+1.5V~+3.6V) 4.0mA typ. @VDD=2.8.
The NJG1143UA2 is a GPS LNA GaAs MMIC featured very samll size, low noise figure, high gain and low current consumpition. The NJG1143UA2 operates from 1.5V to 3.6V single voltage, has stand-by mode to save the supply current, and requires only three .
