NJG1144KA1 Datasheet, mmic equivalent, NJR

PDF File Details

Part number: NJG1144KA1

Manufacturer: NJR

File Size: 490.84KB

Download: 📄 Datasheet

Description: GPS LOW NOISE AMPLIFIER GaAs MMIC

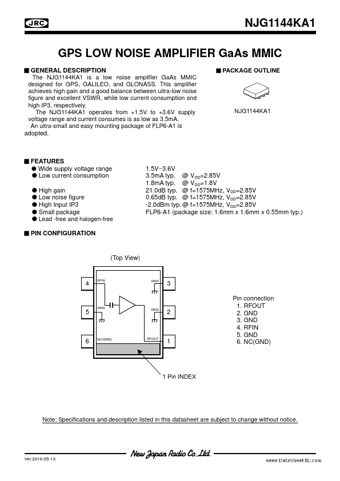

Datasheet Preview: NJG1144KA1 📥 Download PDF (490.84KB)

NJG1144KA1 Features and benefits

Wide supply voltage range Low current consumption High gain Low noise figure High Input IP3 Small package Lead -free and halogen-free PIN CONFIGURATION 1.5V~3.6V 3.5mA t.

NJG1144KA1 Description

The NJG1144KA1 is a low noise amplifier GaAs MMIC designed for GPS, GALILEO, and GLONASS. This amplifier achieves high gain and a good balance between ultra-low noise figure and excellent VSWR, while low current consumption and high IP3, respectively.

Image gallery

Page 2 of NJG1144KA1 Page 3 of NJG1144KA1
