23KM-K040V, 23KM-K250V Datasheet - NMB

23KM-K040V Motors

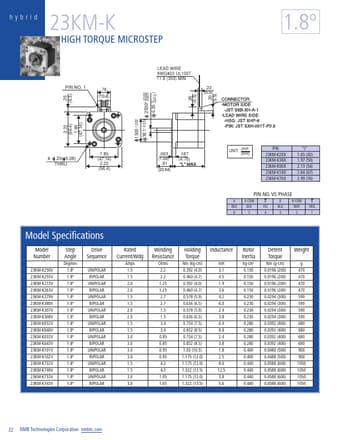

hybrid 23KM-K HIGH TORQUE MICROSTEP LEAD WIRE AWG#22 UL1007 11.8 (300) MIN 1.8º .22 (5.5) PIN NO. 1 .26 (6.5) .76 0 ) ( 6.35 -0.013 .2500+.0000 -.0005 (19.4) - .002 1.500 + ( 38.1+ - 0.05) 2.22 (56.4) 1.85 (47.14) .26 (6.5) .20 (5.5) 4- .20( 5.08) THRU 1.85 (47.14) 2.22 (56.4) .063 (1.59) .81 (20.64) .187 (4.76) UNIT: inch (mm) P/N 23KM-K2XX 23KM-K3XX 23KM-K0XX 23KM-K1XX 23KM-K7XX “L” 1.65 (42) 1.97 (50) 2.13 (54) 2.64 (67) 2.99 (76) PIN NO. VS PHASE A RED 6 A COM BLK 5 A YEL.

23KM-K250V-NMB.pdf

23KM-K040V Datasheet Preview — This datasheet PDF includes multiple part numbers: 23KM-K040V, 23KM-K250V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

23KM-K040V, 23KM-K250V

Manufacturer:

NMB

File Size:

92.43 KB

Description:

Motors.

Note:

This datasheet PDF includes multiple part numbers: 23KM-K040V, 23KM-K250V.
Please refer to the document for exact specifications by model.
