GU112x16G-K610A7 VFD Module

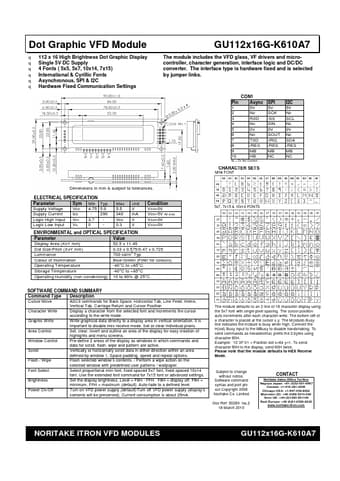

Dot Graphic VFD Module q 112 x 16 High Brightness Dot Graphic Display q Single 5V DC Supply q 4 Fonts ( 5x5, 5x7, 10x14, 7x15) q International & Cyrillic Fonts q Asynchronous, SPI & I2C q Hardware Fixed Communication Settings GU112x16G-K610A7 The module includes the VFD glass, VF drivers and microcontroller, character generation, interface logic and DC/DC converter. The interface type is hardware fixed and is selected by jumper links. CON1 Pin Async 1 5V 2 Nc 3 RXD 4 Nc 5 0V 6 Nc 7 TXD 8 /RES .

GU112x16G-K610A7 Datasheet (722.45 KB)
