NCA1042 High-speed CAN Transceiver

13 6.1. OVERVIEW 13 6.2. DEVICE FUNCTIONAL MODES 14 6.3. NORMAL MODE 14 6.4. STANDBY MODE 14 6.5. TXD DOMINANT TIME-OUT FUNCTION 14 6.6. RXD DOMINANT TIME-OUT FUNCTION 14 6.7. CURRENT PROTECTION 15 6.8. OVER TEMPERATURE PROTECTION 15 6.9. VIO OUTPUT SUPPLY 15 7. APPLICATION NOTE 1.

NCA1042 High-speed CAN Transceiver with Standby Mode Datasheet (EN) 1.3 Product Overview The NCA1042 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1042 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1042 provides thermal .

NCA1042 Features

* Fully compatible with the ISO11898-2 standard

* I/O voltage range supports 3.3V and 5V MCU

* Power supply voltage VIO: 3V to 5.5V VCC: 4.5V to 5.5V

* Bus fault protection of -70V to +70V

* Transmit data (TXD) dominant time out function

* Bus dominant time out function in st

NCA1042 Datasheet (1.58 MB)

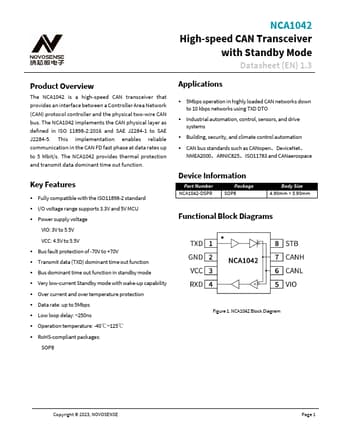

NCA1042 Datasheet Preview — Preview of NCA1042 PDF

Datasheet Details

Part number:

NCA1042

Manufacturer:

NOVOSENSE

File Size:

1.58 MB

Description:

High-speed can transceiver.
