NCA1042B - High-speed CAN Transceiver

Product Overview

NOVOSENSE

Datasheet Details

Part number	NCA1042B
Manufacturer	NOVOSENSE
File Size	733.78 KB
Description	High-speed CAN Transceiver
Datasheet	NCA1042B Datasheet

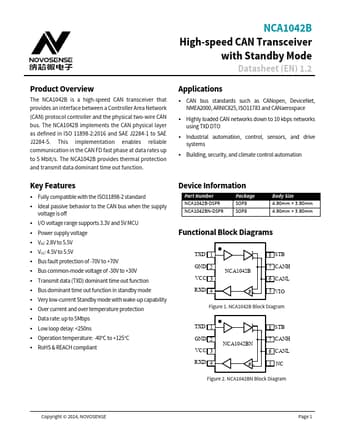

Additional preview pages of the NCA1042B datasheet.

Product details

Description

14 7.1. OVERVIEW 14 7.2. FUNCTIONAL BLOCK DIAGRAM 14 7.3. FEATURE DESCRIPTION 15 7.3.1. TXD Dominant Time-Out Function (TXD DTO) 15 7.3.2. Bus Dominant Time-Out Function (Bus DTO) 15 7.3.3. Undervoltage Detection on Pins VCC and VIO 15 7.3.4. Unpowered Device 15 7.3.5. Internal Biasing of TXD and STB Input Pins

Features

Fully compatible with the ISO11898-2 standard.
Ideal passive behavior to the CAN bus when the supply voltage is off.
I/O voltage range supports 3.3V and 5V MCU.
Power supply voltage.
VIO: 2.8V to 5.5V.
VCC: 4.5V to 5.5V.
Bus fault protection of -70V to +70V.
Bus common-mode voltage of -30V to +30V.
Transmit data (TXD) dominant time out function.
Bus dominant time out function in standby mode.
Very low-current Standby mode with wake-up capab.
