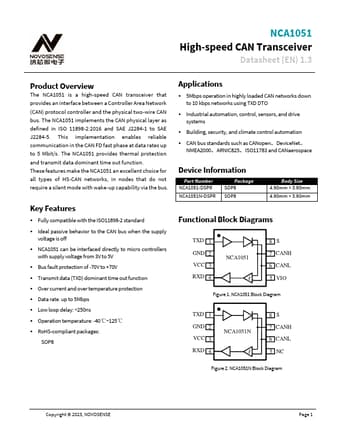

NCA1051 High-speed CAN Transceiver Datasheet (EN) 1.3 Product Overview The NCA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus.
The NCA1051 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5.
This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s.
The NCA1051 provides thermal protection and tra
NCA1051 Features
* make the NCA1051 an excellent choice for all types of HS-CAN networks, in nodes that do not require a silent mode with wake-up capability via the bus. Key Features
* Fully compatible with the ISO11898-2 standard
* Ideal passive behavior to the CAN bus when the supply voltage is off
* NCA
