NSM1071 - Micropower Unipolar/Omnipolar Switch

8 8.1.

OVERVIEW 8 8.2.

FUNCTION DESCRIPTION 8 9.

APPLICATION NOTE 9 TYPICAL APPLICATION CIRCUIT 9 10.

PACKAGE INFORMATION 10 10.1.

STD PACKAGE 10 10.2.

TO PACKAGE 11 11.

ORDERING INFORMATION 12 12.

TAPE AND REEL INFORMATION

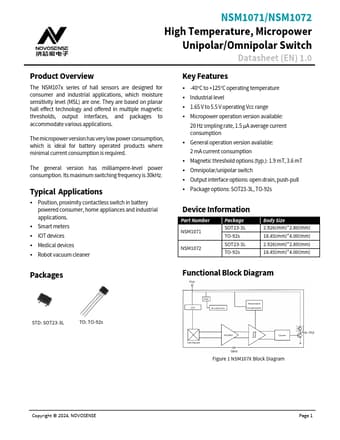

NSM1071/NSM1072 High Temperature, Micropower Unipolar/Omnipolar Switch Datasheet (EN) 1.0 Product Overview The NSM107x series of hall sensors are designed for consumer and industrial applications, which moisture sensitivity level (MSL) are one.

They are based on planar hall effect technology and offered in multiple magnetic thresholds, output interfaces, and packages to accommodate various applications.

The micropower version has very low power consumption, which is ideal for battery operated p

NSM1071 Features

* -40°C to +125°C operating temperature

* Industrial level

* 1.65 V to 5.5 V operating Vcc range

* Micropower operation version available: 20 Hz smpling rate, 1.5 µA average current consumption

* General operation version available: 2 mA current consumption

* Magnetic thresho
