NSM2015 - Hall-Effect-Based Current Sensor IC

NSM2015 Description

NSM2015 Hall-Effect-Based Current Sensor IC with Common- Mode Field Rejection and Overcurrent protection Datasheet (EN) 1.0 Product Overview NSM2015 .

NSM2015 Features

* High bandwidth and fast response time
* 320kHz bandwidth
* 1.5us response time
* High-precision current measurement
* Differential Hall sets can immune stray field
* High isolation level that meets UL standards
* Working Voltage for Basic Isolation (VWVBI): 1550Vpk / 1

NSM2015 Applications

* NSM2015 can reach a working voltage of 1550Vpk, and it can withstand 10kV surge voltage and 13kA surge current without adding any protection devices. NSM2015 has a pseudo-differential output mode (fixed output), the output voltage will not change within a certain supply voltage, eliminating LDO on

📥 Download Datasheet

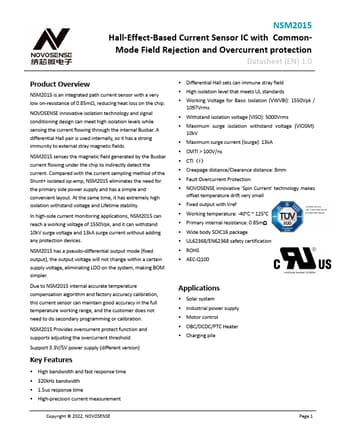

Preview of NSM2015 PDF
