NSi8230 - Triple-Channel Digital Isolators

Description

6.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS13 6.2.

INSULATION CHARACTERISTICS 14 6.3.

Features

  • Up to 8000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust Electromagnetic Compatibility (EMC).
  • System-Level ESD, EFT, and Surge Immunity.
  • Low Emissions.
  • Default output high level or low level option.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

Datasheet preview – NSi8230

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSi8231 - Triple-Channel Digital Isolators
  • NSI8220 - High Reliability Dual-Channel Digital Isolators
  • NSI8220-Q1 - High Reliability Dual-Channel Digital Isolators
  • NSi8220C - Dual-Channel Digital Isolators
  • NSI8221 - High Reliability Dual-Channel Digital Isolators
  • NSI8221-Q1 - High Reliability Dual-Channel Digital Isolators
  • NSi8221C - Dual-Channel Digital Isolators
  • NSI8222 - High Reliability Dual-Channel Digital Isolators

Full PDF Text Transcription

Click to expand full text

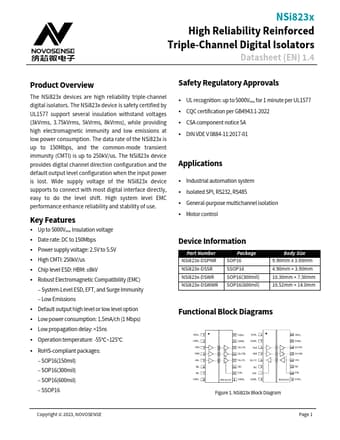

NSI823x High Reliability Reinforced Triple-Channel Digital Isolators Datasheet (EN) 1.5 Product Overview The NSI823x devices are high reliability triplechannel digital isolators. The NSI823x device is safety certified by UL1577 support several insulation withstand voltages (3kVrms, 3.75kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSI823x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSI823x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSI823x device supports to connect with most digital interface directly, easy to do the level shift.
