NTE74158

TTL - Quad 2-Line-to-1-Line Data Selector/Demultiplexer

NTE74158 Features

* D Buffered Inputs and Outputs Applications: D Expand Any Data Input Point D Multiplex Dual Data Buses D Generate Four Functions of Two variables (One Variable is Common) D Source Programmable Counters Absolute Maximum Ratings: (Note 1) Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . .

NTE74158 General Description

The NTE74158 is a quad 1

*line

*to

*4

*line data selector/multiplexer in a 16

*Lead plastic DIP type package that contains inverters and drivers to supply full on

*chip data selection to the four output gates. A separate strobe input is provided. A 4

NTE74158 Datasheet (64.46 KB)

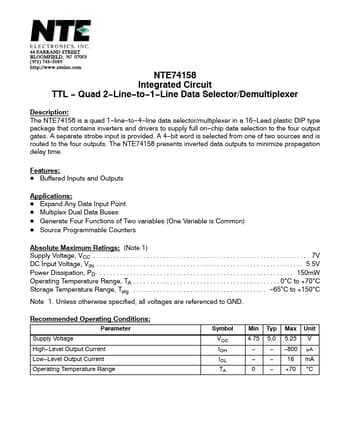

Preview of NTE74158 PDF
