NTE74199 Datasheet - NTE

8-Bit Universal Shift Register

NTE74199 Features

* parallel inputs, parallel outputs, J

* K serial inputs, shift/load control input, a direct overriding clear line, and gated clock inputs nd has three modes of operation: Inhibit Clock (Do Nothing) Shift (In the Direction QA toward QH) Parallel (Broadside) Load Parallel loading is accomplished

NTE74199 General Description

The NTE74199 is an 8 *bit shift register in a 24 *Lead DIP type package compatible with most other TTL and MSI logic families. All inputs are buffered to lower the drive requirements to one normalized Series 74 load, and input clamping diodes minimize switching transients to simplify .

NTE74199 Datasheet (68.18 KB)

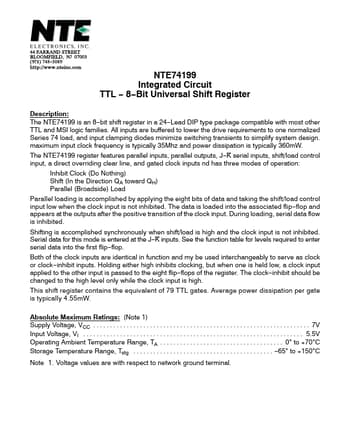

NTE74199 Datasheet Preview — Preview of NTE74199 PDF

Datasheet Details

Part number:

NTE74199

Manufacturer:

NTE

File Size:

68.18 KB

Description:

8-bit universal shift register.
