NTE74154

4-Line-to-16-Line Decoder/Demultiplexer

NTE74154 Features

* D Ideal for High

* Performance Memory Decoding D Designed for Power

* Critical Applications D Decodes 4 Binary

* Coded Inputs into One of 16 Mutually Exclusive Outputs D Performs the Demultiplexing Functions by Distributing Data From One Input Line to Any One of 16 Outputs D Input

NTE74154 General Description

The NTE74154 is a monolithic 4

*line

*to

*16

*line decoder in a 24

*Lead DIP type package and utilizes TTL circuitry to decode four binary

*coded inputs into one of sixteen mutually exclusive outputs when both the strobe inputs, G1 and G2, are low. The demu.

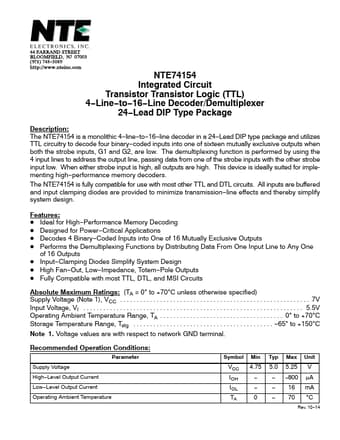

NTE74154 Datasheet (74.69 KB)
