2N5303, 2N5301 Datasheet - NTE

2N5303, 2N5301, Silicon NPN Transistor

2N5301 & 2N5303 Silicon NPN Transistor High Power Audio Amplifier TO *3 Type Package .
The 2N5301 and 2N5303 are silicon NPN transistors in a TO. 3 type case designed for use in power amplifier and switching circuits applications.

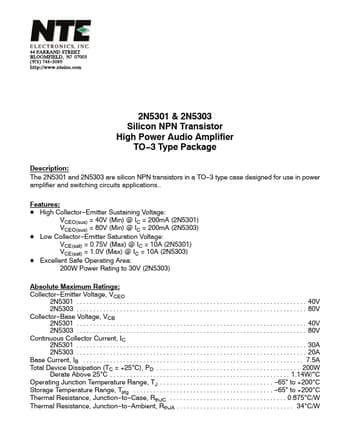

datasheet Preview Page 1 from Datasheet4u.com

2N5301-NTE.pdf

2N5303 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N5303, 2N5301. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N5303, 2N5301

Manufacturer:

NTE

File Size:

68.36 KB

Description:

Silicon NPN Transistor

Note:

This datasheet PDF includes multiple part numbers: 2N5303, 2N5301.
Please refer to the document for exact specifications by model.

Features

* D High Collector
* Emitter Sustaining Voltage: VCEO(sus) = 40V (Min) @ IC = 200mA (2N5301) VCEO(sus) = 80V (Min) @ IC = 200mA (2N5303) D Low Collector
* Emitter Saturation Voltage: VCE(sat) = 0.75V (Max) @ IC = 10A (2N5301) VCE(sat) = 1.0V (Max) @ IC = 10A (2N5303) D Excellent Safe Oper
