2N6609 - Silicon PNP Transistor

Name: 2N6609
SKU: 2N6609-1417122

NTE

📥 Download Datasheet

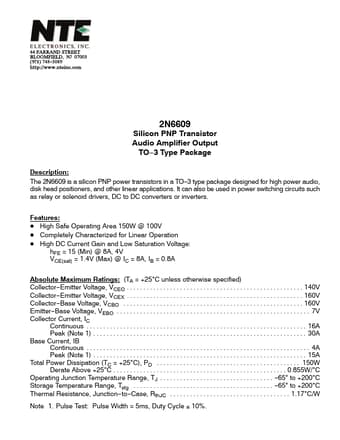

2N6609 Datasheet Preview — Preview of 2N6609 PDF

Datasheet Details

Part number	2N6609
Manufacturer	NTE
File Size	65.14 KB
Description	Silicon PNP Transistor
Datasheet	2N6609-NTE.pdf

2N6609 Product details

Description

The 2N6609 is a silicon PNP power transistors in a TO 3 type package designed for high power audio, disk head positioners, and other linear applications.

Features

D High Safe Operating Area 150W @ 100V D Completely Characterized for Linear Operation D High DC Current Gain and Low Saturation Voltage: hFE = 15 (Min) @ 8A, 4V VCE(sat) = 1.4V (Max) @ IC = 8A, IB = 0.8A Absolute Maximum Ratings: (TA = +25C unless otherwise specified) Collector.
Emitter Voltage, VCEO.
. . . 140V Collector.
Emitter Voltage, VCEX.
