IRF350 - N-Channel MOSFET

Datasheet Summary

Features

  • D Repetitive Avalanche Ratings D Dynamic dv/dt Rating D Simple Drive Requirements D Ease of Paralleling G S Absolute Maximum Ratings: Drain.
  • Source Voltage (VGS = 0V, ID = 1mA), VDSS.
  • . . 400V Gate.
  • Source Voltage, VGS.
  • . . 20V Continuous Drain Current (VGS = 10V), ID TC = +25C.

📥 Download Datasheet

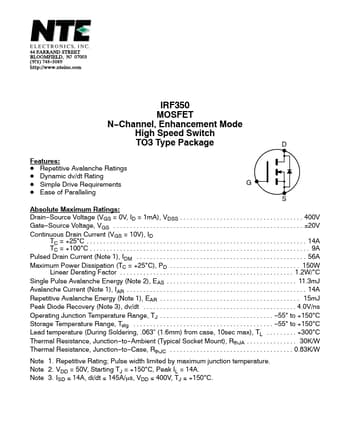

Datasheet preview – IRF350

Datasheet Details

Part number IRF350
Manufacturer NTE
File Size 69.66 KB
Description N-Channel MOSFET
Datasheet download datasheet IRF350 Datasheet
Additional preview pages of the IRF350 datasheet.

📁 Similar Datasheet

  • IRF350 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF350 - N-Channel Power MOSFET (Samsung semiconductor)
  • IRF350 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF350 - N-Channel Power MOSFET (International Rectifier)
  • IRF350 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF351 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF351 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF351 - N-Channel Power MOSFET (Samsung semiconductor)
  • IRF3515L - Power MOSFET (International Rectifier)
  • IRF3515LPBF - Power MOSFET (International Rectifier)
Other Datasheets by NTE

Full PDF Text Transcription

Click to expand full text
IRF350 MOSFET N−Channel, Enhancement Mode High Speed Switch TO3 Type Package D Features: D Repetitive Avalanche Ratings D Dynamic dv/dt Rating D Simple Drive Requirements D Ease of Paralleling G S Absolute Maximum Ratings: Drain−Source Voltage (VGS = 0V, ID = 1mA), VDSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V Gate−Source Voltage, VGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V Continuous Drain Current (VGS = 10V), ID TC = +25C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14A TC = +100C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
